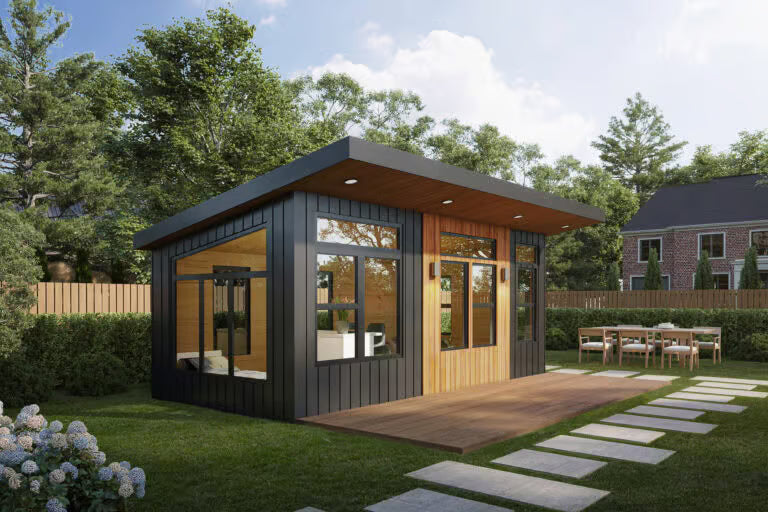

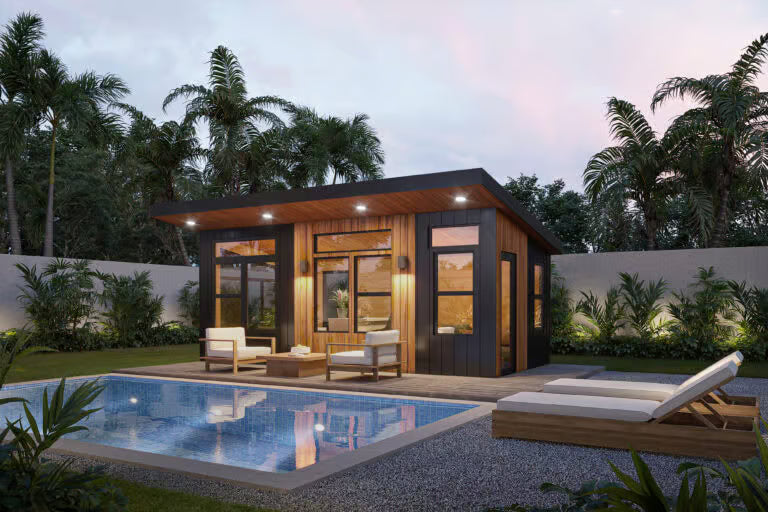

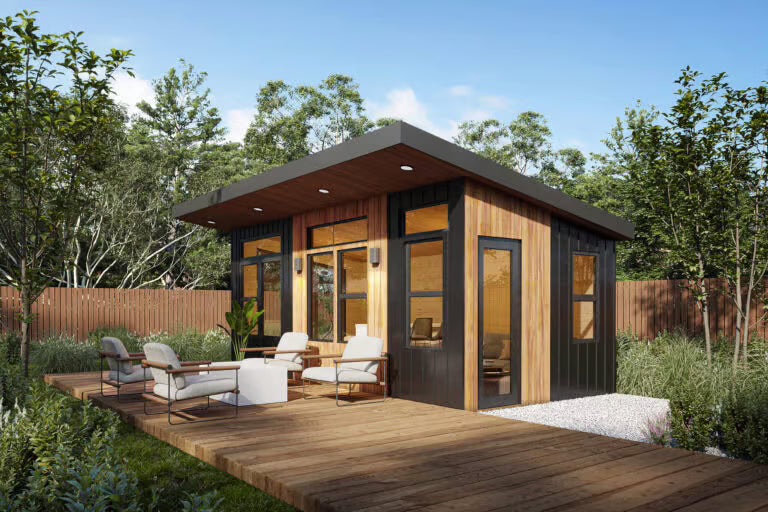

Backyard Escape

This Backyard Escape allows you the comfort of working from home, while still having the privacy of your own space.

Specifications

Square Feet
240
Sleeps
Up To 2
Sale Pricing
$87,200
Ships To
United States
Dimensions
12'11" x 24'3"
Layout
Studio

Backyard Escape Specifications

Overview

  • 12′11″ wide x 24’3″ long overall dimensions (outside overhands)
  • 10′ wide x 24′ long building dimensions = 240 sq ft
  • 1 full bath
  • Kitchette, with top cabinets and mini fridge
  • RVIA Seal Built to ANSI A119.5 Standards

Exterior Design

  • Trailer – Heavy Duty Steel, 2-Axle Chassis w/ Detachable Hitch
  • 2 x 6 floor joist 16” o/c with ¾” OSB subfloor
  • 2 x 4 exterior walls 16” o/c studs with 7/16” OSB subsiding and house wrap
  • 2 x 4 interior walls 16” o/c studs
  • 2 x 6 roof rafters 24″ o/c center w/ 1/2″ OSB sheathing & ice guard
  • Roof sheathing ½” OSB with underlayment & ice guard
  • Premier standard rib textured metal roof – 28 gauge (color TBD)
  • Premier standard rib textured metal siding – 28 gauge (color TBD)
  • Anderson 100 series, double pane single hung windows (black)
  • Provia 32” full glass entry door (black)
  • Matte black door hardware w/ deadbolt

Insulation

  • R19 Closed Cell Spray Foam in the Floor, Walls & Ceiling

Interior Designs

  • Luxury vinyl plank flooring throughout (color TBD)
  • Walls and ceiling finished w/ 1/2″ birch plywood (painted white)
  • 2 panel solid core door pocket door (painted white)
  • Matte black door hardware

Kitchenette Designs

  • Custom cabinets per drawings with flat panel plywood doors (painted color TBD)
  • Under the counter mini fridge (color black)
  • Single bowl, drop-In stainless steel sink 18” x 22”
  • Laminate countertop (color TBD)
  • Matte black faucet & cabinet hardware
  • Soft close door hinges & drawer slides

Bathroom Designs

  • Custom vanity with cultured marble top & single bowl sink (painted color TBD)
  • Fiberglass corner shower 3’ x 3’ (white)
  • Faucets & cabinet hardware (matte black)
  • Standard elongated toilet (white)
  • Exhaust vent fan with light combo
  • Vanity mirror
  • Vanity light
  • Towel bars, toilet paper holder, (matte black)
  • Shower curtain rod (matte black)

Utilities

  • Tankless water heater – electric
  • Ceiling fan w/ lights 1 included (color TBD)
  • Standard per code Interior outlets, switches, and GFCI receptacle (white covers)
  • Recessed lights throughout
  • Exterior outlet w/ cover one by each entry door
  • Exterior wall light one by each entry door (black)
  • Frost resistant exterior faucet one on back of house
  • Bosch ductless Mini Split 9000 BTU – 1 outside unit 1 inside unit
  • Safety features per code, fire extinguisher, smoke alarms & carbon monoxide detector
  • 100 AMP breaker box w/ conduit for direct tie-In
  • All plumbing drain lines ready to tie into 3” pipe
  • Pex water lines ready to connect to main water supply

Add-Ons & Upgrades

  • Corrugated metal exterior siding ¼” ridges (color TBD) + $1,300
  • Corrugated metal exterior roof ¼” ridges (color TBD) + $800
  • Premier legacy rib textured exterior roof + $550
  • Vinyl board & batten exterior siding 8” wide (color TBD) + $2,900
  • Vinyl lap exterior siding 4” horizontal (color TBD) + $1,900
  • Log exterior half round siding (stained color TBD) + $5,500
  • Pine T&G interior walls (clear finish) + $5,500
  • Pine T&G interior ceiling (clear finish) + $2,200
  • Pine T&G interior ceiling (dark stain finish) + $4,200
  • Poplar nickel gap interior walls (painted) + $10,500
  • Quartz kitchen countertops (color TBD) + $2,600
  • Butcher block kitchen countertops stained (color TBD) + $950
  • Butcher block bathroom countertops stained (color TBD) + $150
  • Tile backsplash kitchen (subway tile white) + $2,000
