A-Frame United

Elevate your outdoor experience with the A-Frame United. Measuring 10’x20′, this model has two skylights that flood the interior with natural light and offer breathtaking views of the night sky, while the huge picture window allows you to capture those amazing views of nature. Whether you’re stargazing or simply soaking in the sights, the A-Frame United delivers an unforgettable glamping experience every time.

Specifications

Square Feet

200

Sleeps

Up To 2

Sale Pricing

$84,575

Ships To

United States

Dimensions

10' x 20'

Layout

Studio w/ Kitchenette & Shower Room

Technical Specifications

Overview

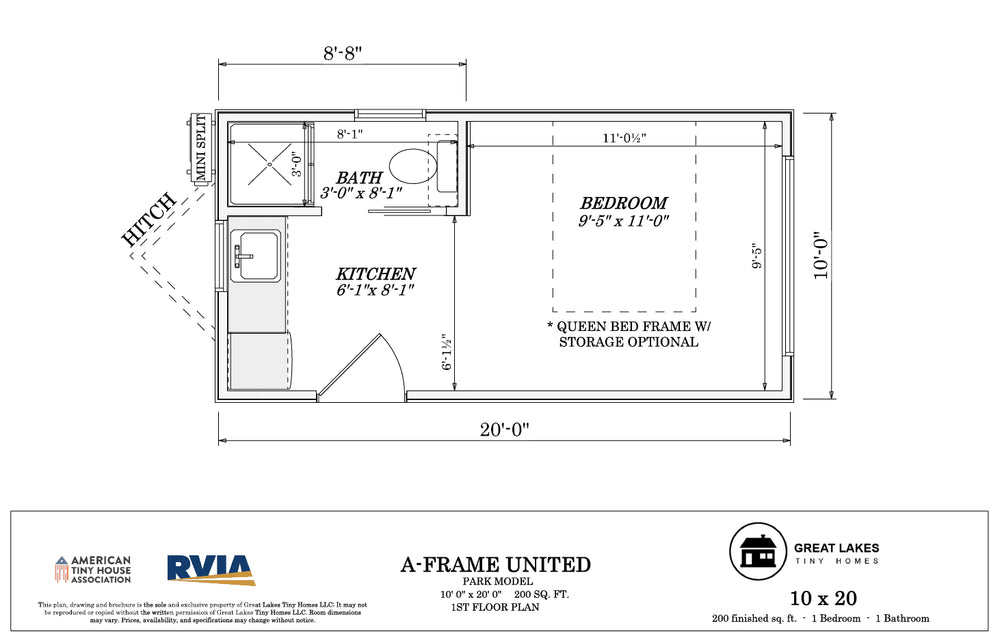

10’ wide x 20’ long = 200 sq. ft.
1 full bathroom
Kitchenette and bedroom area
RVIA seal built to ANSI A119.5 standards
Built on a Trailer/Chassis – heavy-duty steel with detachable hitch
Can easily be designed built with skids and no chassis
Specifically designed with glamping in mind

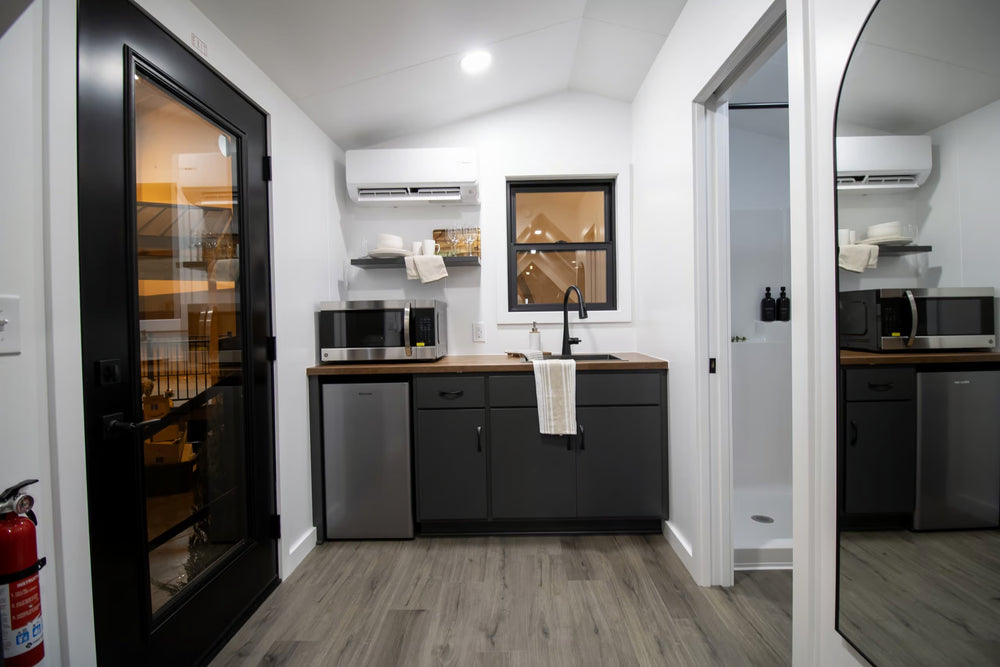

Kitchen Designs

Custom cabinets w/ flat panel doors
Soft close door hinges & drawer slides
Single bowl sink
Butcher block kitchen countertops stained
Faucet & cabinet hardware (matte black)
Under the counter mini fridge (black)
Countertop microwave (black)

Exterior Designs

Premier legacy rib textured exterior roof
Corrugated metal exterior siding ¼” ridges
2”x 6” roof rafters, 24” on-center w/ 1/2” OSB underlayment & ice guard
2”x 4” studs, 16” on-center w/ 7/16” OSB sheathing, house wrap & window/tape
2”x 6” floor joists, 16” on-center w/ ¾” OSB subfloor
Anderson 100 series, double pane single hung windows (Black)

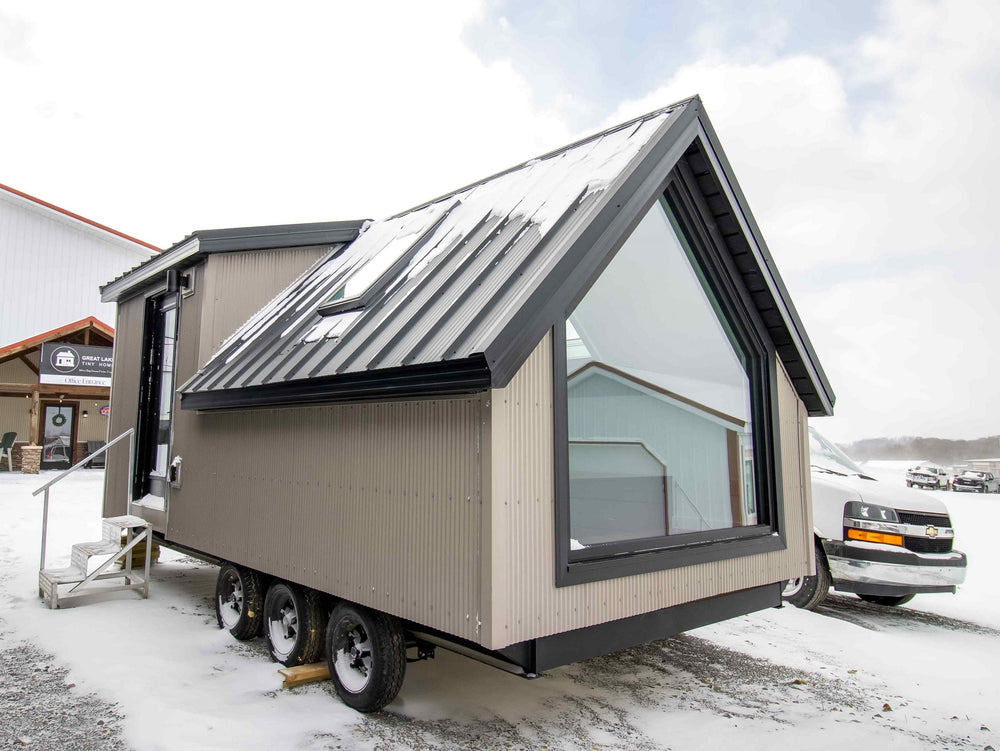

Large custom windows on A-Frame end
Full glass entry door (black)
Matte black door hardware w/ deadbolt

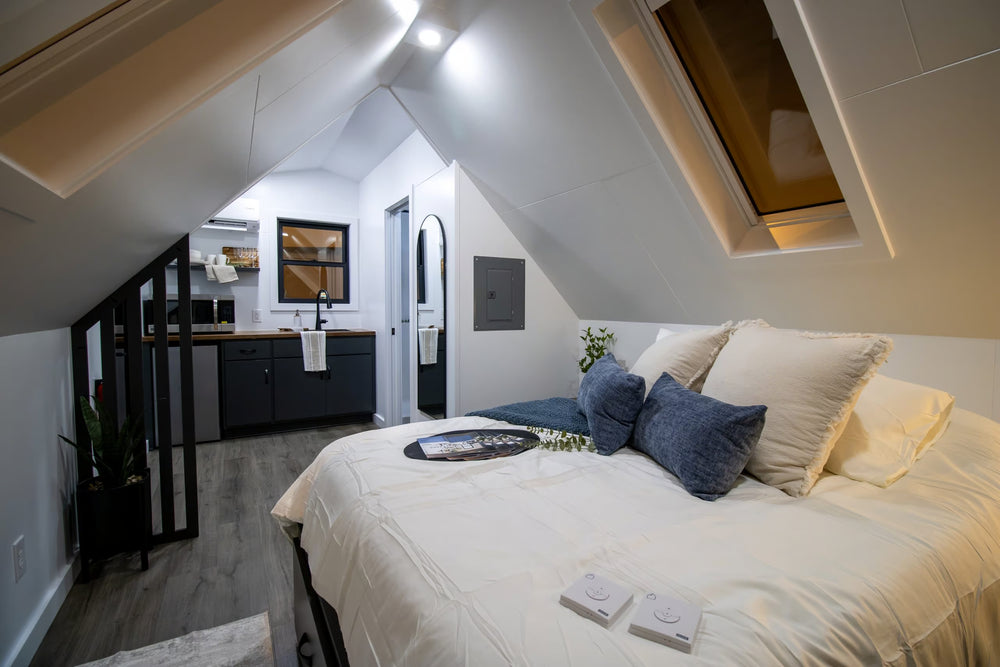

2 – skylights in the A-Frame roof area

Bathroom Designs

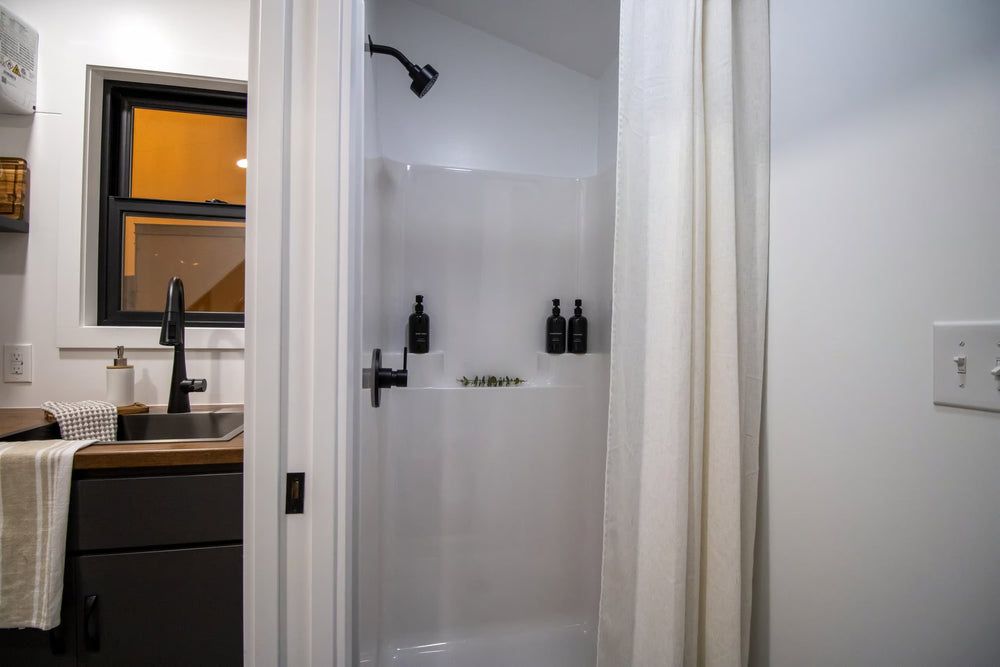

Fiberglass 1 piece shower 3’ x 3’ (white)
Shower faucet matte black

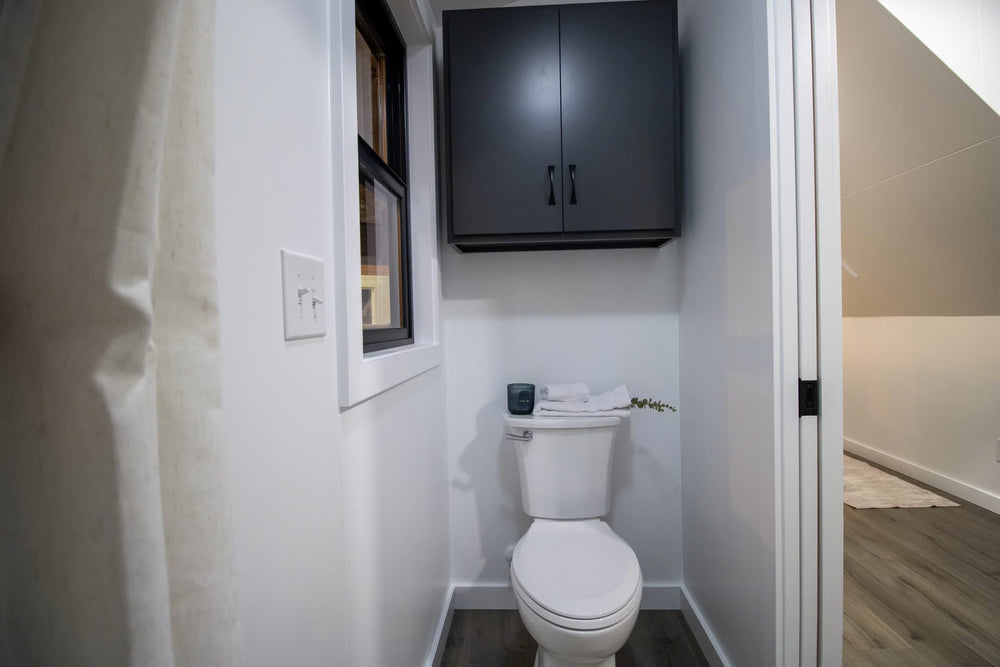

Standard elongated toilet (white)
Exhaust fan with light combo
Towel bars, toilet paper holder (matte black)
Custom wall cabinet above the toilet

Porch

Cedar porch posts and beams (clear finish)
Aluminum deck railing (black)
Composite porch decking floor
Cedar on porch wall and ceiling (clear finish)

Utilities

Tankless electric hot water heater
Standard per code Interior outlets, switches, and GFCI receptacle (white covers)
Recessed lights
Exterior outlet w/ cover one by entry door
Exterior wall light one by entry door (black)
Frost resistant exterior faucet one on back of house

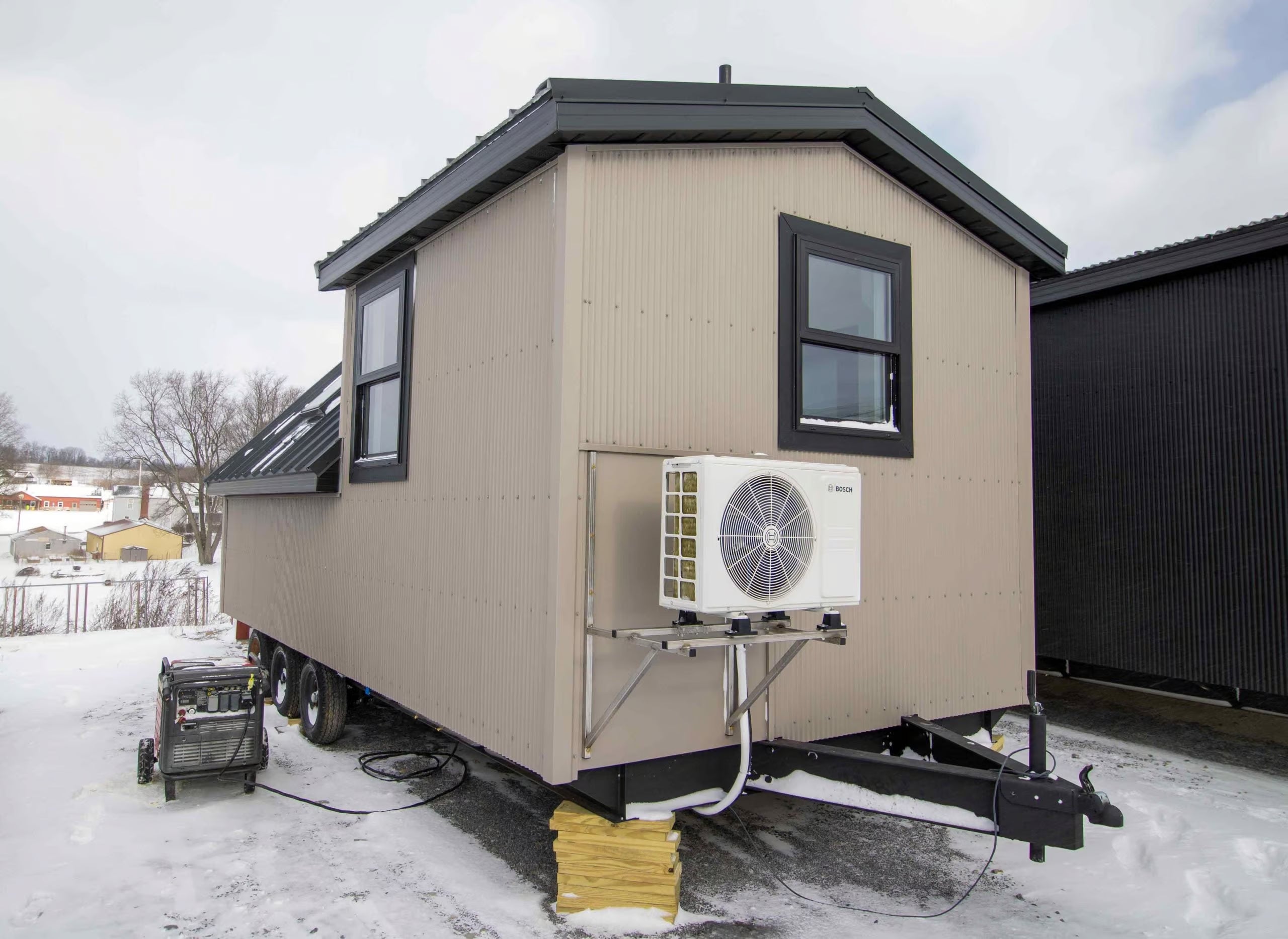

Bosch ductless Mini Split – 1 outside unit & 1 inside unit
Safety features per code, fire extinguisher, smoke alarms & carbon monoxide detector
100 AMP breaker box w/ conduit for direct tie-In
All plumbing drain lines ready to tie into 3” pipe
Pex water lines ready to connect to main water supply
